SS Crit

The difference between racing fixed gear bikes on a banked velodrome, and racing on a flat, crowded course with varying turns is big enough to justify a purpose built frame, particularly suited to the wild and woolly environment of the modern single speed crit race.

MKI SS Crit features an oversized, round tubeset to put more emphasis on torsional stiffness and acceleration - more suited to a style off racing where hairpin turns require large decelerations followed by quick accelerations in straightaways.

Crit specific geometry and a higher bottom bracket allows for better pedal clearance on tight, flat turns, and extra maneuverability in a race where agility and position is key.





Frame Specifications



FRAME - 7005 custom extruded aluminum tubing

WEIGHT - 1.4 kg (54cm painted)

FORK - Pista Leggera Carbon fork or Enve 2.0 road fork

HEADTUBE - 1.5 Tapered

HEADSET - Cane Creek Drop-in

BOTTOM BRACKET - 68mm English threaded

MAX TIRE CLEARNACE - 28 mm

BRAKES - Rear brake available upon request

SEAT POST SIZE - 27.2 mm

SEAT POST COLLAR - Thomson 31.8 mm




HANDMADE IN SAN FRANCISCO

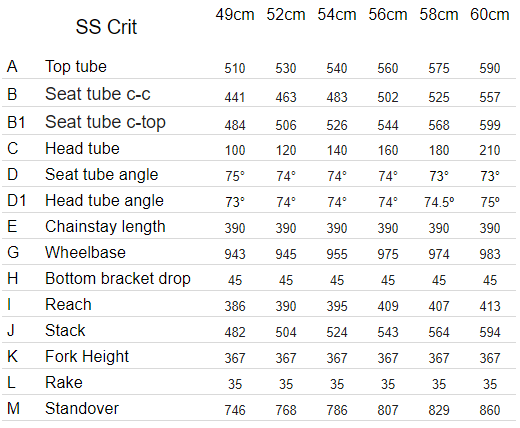

Geometry


website mki road geometry image.jpg
2019 ss geo.png



Finish Options



Stock Powder Coat

  • Frame: Matte Graphite Black or Steel Blue

  • Graphics: Matte White (under clear coat)

  • Fork: Matte Black

  • No additional charge

Custom Powder Coat

  • Frame: Matte or Gloss RAL Color of your choice

  • Graphics: Pantone color of your choice

  • Fork: Matte black

  • $200

Raw

  • Frame: Raw polished aluminum with gloss clear powder coat

  • Graphics: Matte Pantone Color of your choice

  • Fork: Matte black

  • $700

Custom Wet Paint

  • Frame: Matte or Gloss PPG Color

  • Graphics: Matte or Gloss PPG Color

  • Fork: Matched to frame

  • $1,200




Components

The following components can be ordered with your frameset order to complete your build. Assembly is required.
