The Low Cross, was our first foray out of the track bike world and laid the groundwork for the rest of the MK Road Series. This is the frame that gave birth to our renowned tube manipulation and shaping process - one of the main features that distinguishes Low Bicycles as a world class manufacturer of Aluminum frames.

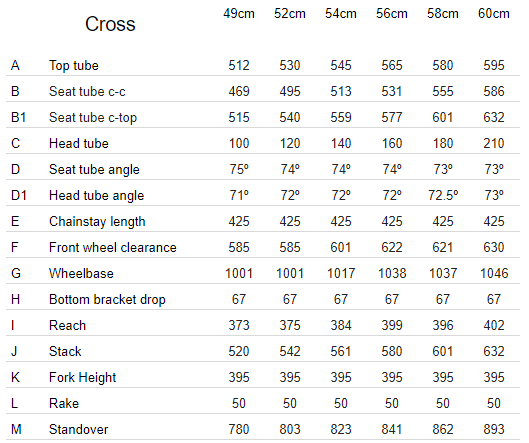

While sharing many similarities with the MK Road Series, the Cross features a Cyclocross specific tubeset and geometry, designed for racing varied and challenging terrain. We went with a stout rear triangle for race ready stiffness, but with smaller downtube to balance out the feel. Compared to the MKIII Gravel frame, a slightly lower stack height allows for a more aggressive body position better suited for racing. Also, higher bottom bracket allows for more maneuverability and clearance in tightly winding cyclocross courses, while a slightly slacker head tube angle allows for stability and control in short, steep climbs and descents.
Scroll to bottom to order
FRAME - 7005 custom extruded aluminum tubing
WEIGHT - 1.4 kg (54cm painted)
FORK - Enve 1.5” G Series Gravel Fork
HEADTUBE - 1.5 Tapered
HEADSET - Cane Creek Drop-in
BOTTOM BRACKET - 68mm English threaded
MAX TIRE CLEARNACE - 45 mm 700c
BRAKES - Flat mount disc
SEAT POST SIZE - 27.2 mm
SEAT POST COLLAR - Thomson 31.8 mm
HANDMADE IN SAN FRANCISCO
Stock Powder Coat
Frame: Matte Graphite Black or Steel Blue
Graphics: Matte White (under clear coat)
Fork: Matte Black
No additional charge
Custom Powder Coat
Frame: Matte or Gloss RAL Color of your choice
Graphics: Pantone color of your choice
Fork: Matte black
Frame: Raw polished aluminum with gloss clear powder coat
Graphics: Matte Pantone Color of your choice
Fork: Matte black
Custom Wet Paint
Frame: Matte or Gloss PPG Color
Graphics: Matte or Gloss PPG Color
Fork: Matched to frame
The following components can be ordered with your frameset order to complete your build. Assembly is required.
order the Cross:
There are currently no Cross frames in stock.
If your desired size or configuration is not available above, fill out the order form below to get a price estimate or to pre-order your Cross frame.
